EXD26-30LT is a small ADS-B receiverwith high stability, wide power input and high receiving sensitivity. Thesignal input of the receiver adopts a two-stage narrow-band filter and aone-stage low-noise amplifier, which can effectively filter out most of theout-of-band noise in the space channel to obtain a better signal-to-noiseratio, and the typical receiving sensitivity can reach -90dBm. The integratedhigh-dynamic signal processing circuit allows simultaneous reception of ADS-Bbroadcast information from short to long distance, with a typical monitoringdistance of up to 250km.

The device supports Ethernet POE or external DC power supply, supportsTCP/UDP protocol, and can be connected to the server to form a large-areaairspace monitoring system. It can output the original ADS-B message(DF17/DF18) or aircraft plaintext information (aircraft identification numberICAO, flight number, latitude and longitude, altitude, speed, heading, etc.)through the UART port and LAN port at the same time.

Application

• ADS-B signal receiver

• Ground equipment, virtual radar

• UAS ground stations and high-density traffic surveillance

• Traffic-flow analysis and statistics

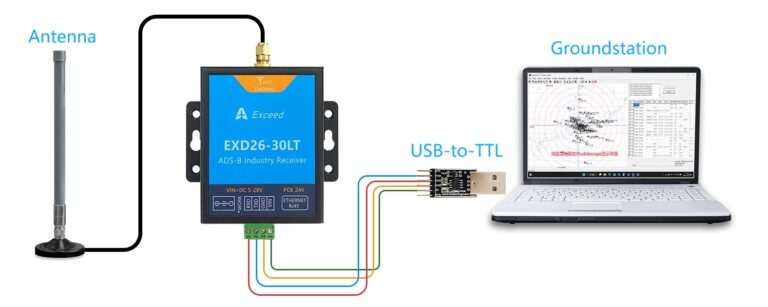

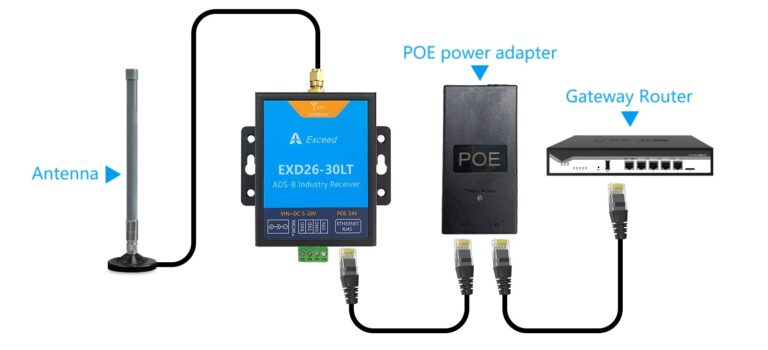

Hardware Connection

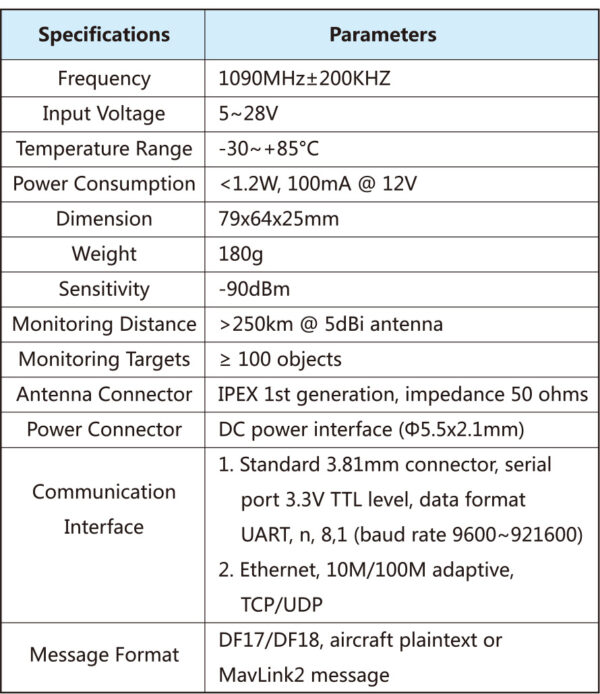

Technical Parameters
