EXD11-TR ADS-B Transceiver (20W-150W)

The EXD11-TR transceiver is installed on top of drones/aircraft and can broadcast the aircraft’s attributes, flight direction, altitude, longitude and latitude information through a matching antenna. It is used to report the target’s position, flight direction, etc. At the same time, it can receive ADS-B signals from other aircraft to achieve autonomous obstacle avoidance and plan flight routes.


Feature

  • Compliant with DO-260B

  • Integrated transmission and reception or single transmission

  • Customizable transmission power of 43dBm-52dBm (20W-150W)

  • ADS-B receiving sensitivity -90dBm, visible distance 200km

  • Integrated GNSS module,

  • supporting SBAS, with horizontal positioning accuracy better than 2.5 meters

  • Integrated pressure sensor provides pressure altitude and climb rate

  • Two data communication interfaces, RS422 and USART TTL,with baud rates of 9600-921600

  • Signal type: 1090ES intermittent oscillation signal (DF17,DF18)


Application

  • Drone ADS-B out

  • Unmanned airships, floating platforms, sounding balloons,small navigable aircraft

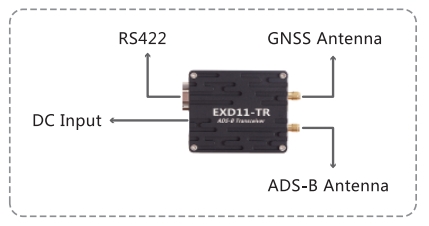

Hardware Connection

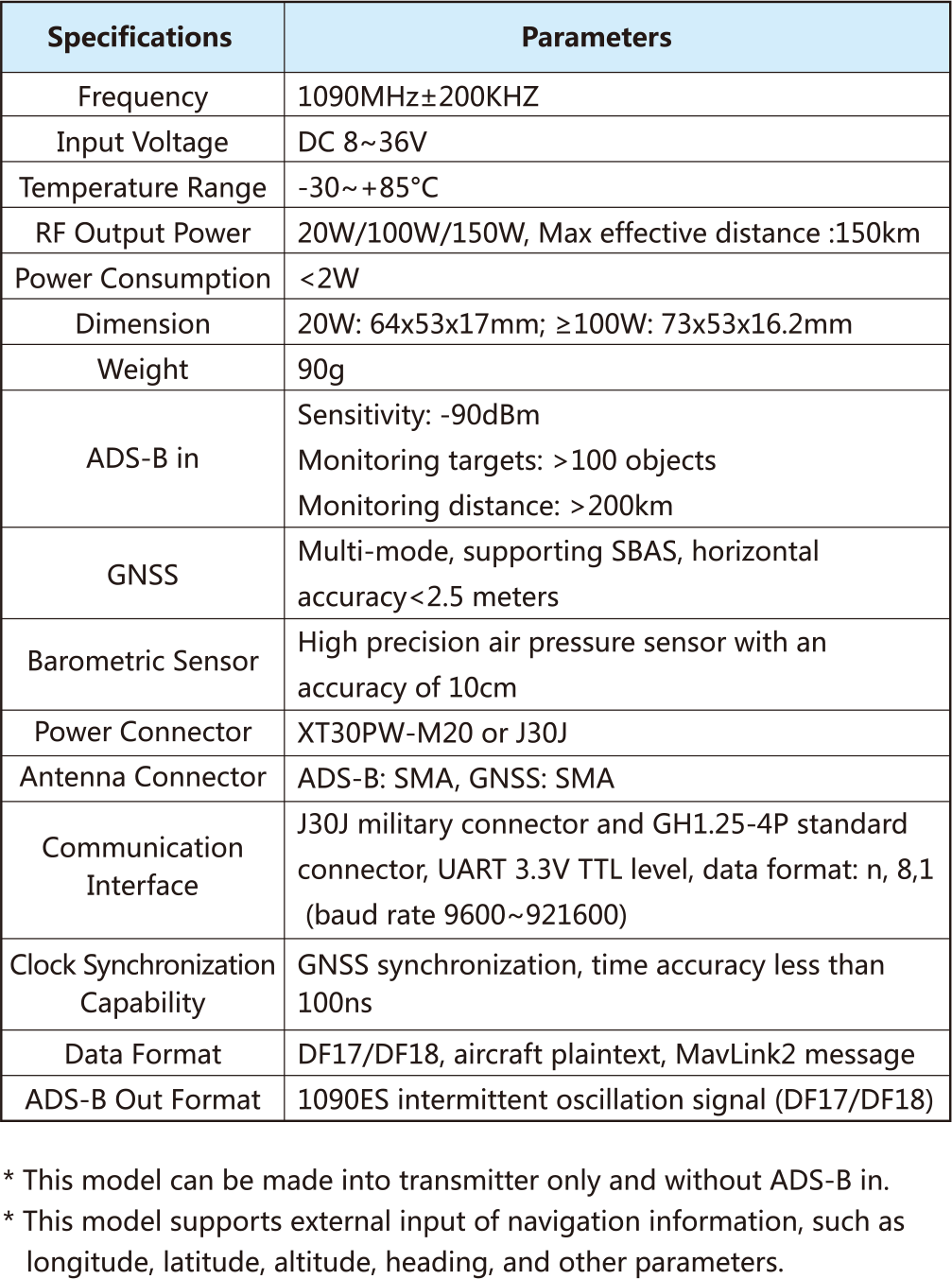

Technical Parameters
