VS12-11T is an ultra-small ADS-B receiver module that supports ADS-B CSV, MavLink, DF17/DF18, as well as custom private output protocols with simple UART interface. The module has a built-in two-stage SAW filter and a high-gain low-noise amplifier, which can effectively filter out most of the out-of-band noise in the air for a better signal-to-noise ratio, with a typical receive sensitivity of -85dBm. The module uses industrial-grade chips, crystal oscillators, passive components, and can work stably from -40 °C to +80 °C.The module uses stamp hole PCB design and supports the reflow soldering process, which is convenient for integration or OEM use, especially suitable for detect and avoid (DAA) systems for unmanned aerial vehicles (UAV).

Features

• Ultra -small size 16x13x2.6mm (weight only 1.5g)

• Ultra -low power consumption (approximately 55mA @ 3.3V)

• UART serial port facilitates integration

• Supporting ADS-B plaintext, MavLink2, or DF17/DF18 raw，message output

• PIN-to-PIN compatibility with Aerobit TT-SC1

• CE and ROHS certify

Application

• ADS-B in device

• SAA / DAA (Sense and Avoid / Detect and Avoid)

• UAS ground stations and high-density traffic surveillance

• ADS-B in for unmanned aerial vehicles (UAV)

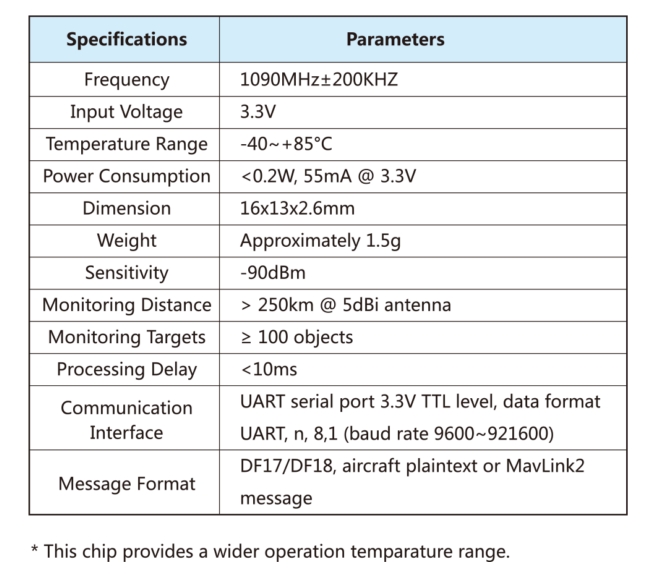

Technical Parameters
