EXD12-TR2 ADS-B Transceiver

EXD12-TR is a 0.5W-4W highly integrated and small size ADS-B transceiver. The device integrates ADS-B out,ADS-B in and GNSS module, providing ADS-B signal transmission and reception, providing ADS-B broadcasting and monitoring. The RF output power (0.5W,1W, 2W,4W) is configurable by the UART command. With the advantages of small size, light weight, high integration and low power consumption of the whole device, it is suitable for occasions with strict requirements for volume and weight.


Features

  • Compliant with DO-260B

  • The transmission power can be configured through the serial port (0.5W, 1W, 2W, 4W)

  • The maximum effective range of the launch is about 10km

  • Receiving sensitivity -90dBm, operating distance approximately 150km

  • ICAO and flight number can be configured through serial port

  • Signal type: 1090ES intermittent oscillation signal (DF17, DF18)

  • Integrated GNSS module positioning accuracy: better than 2.5 meters

  • Integrated pressure sensor provides pressure altitude

  • Standard GH1.25-4P interface, UART protocol, baud rate 9600-921600


Application

  • Drone ADS-B out

  • Unmanned airships, floating platforms, and on-board ADS-B launches

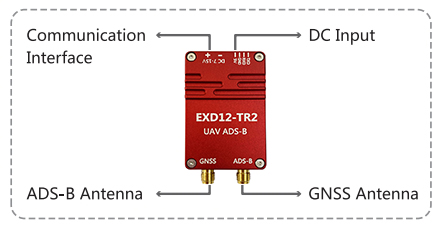

Hardware Connection

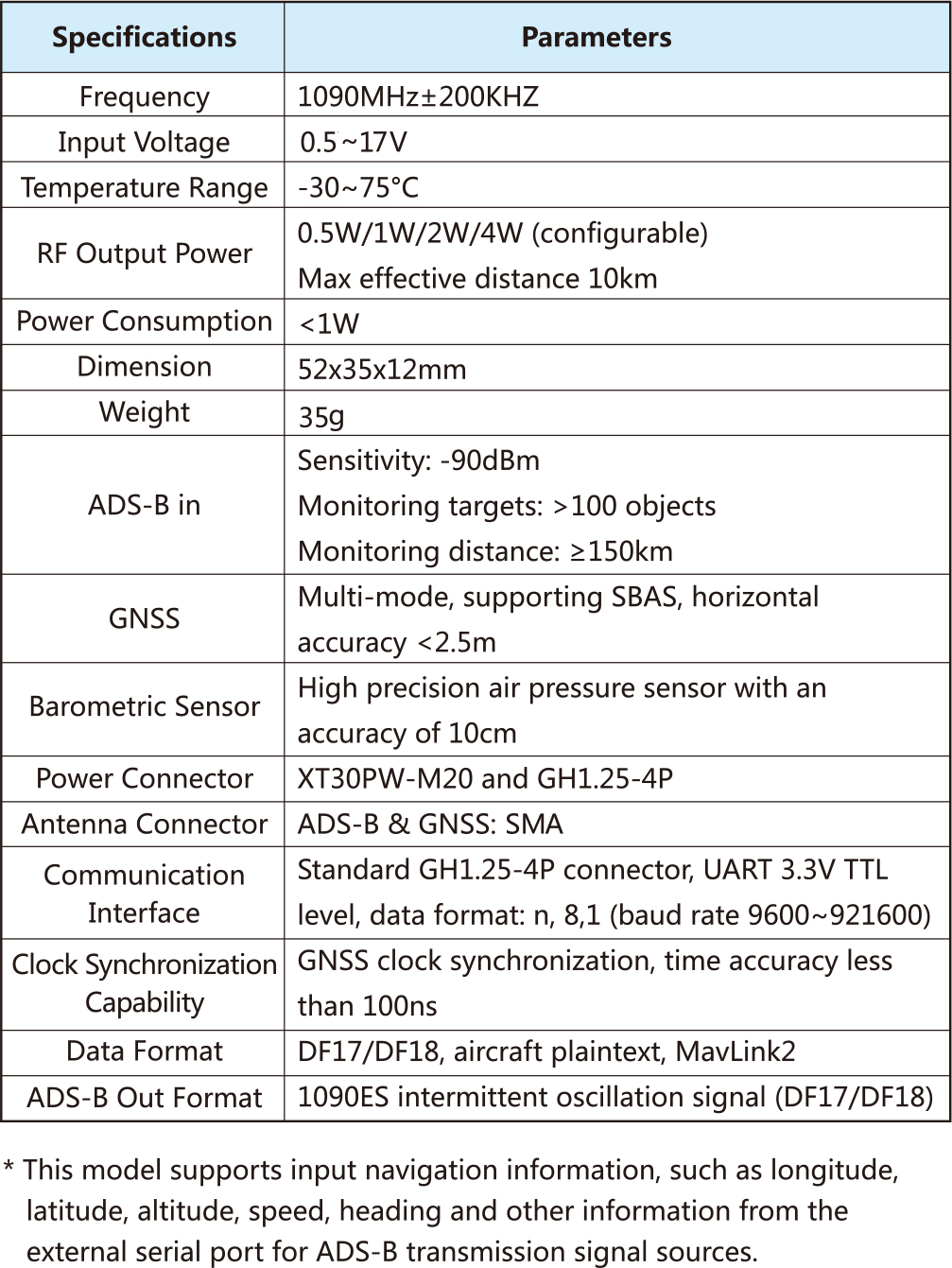

Technical Parameters
