EXD46-10LR High Performance MLAT ADS-B Receiver

High performance ADS-B mode S receiver EXD46-10LR Adopting RS232 and Ethernet data interfaces, supporting TCP/UDP Protocol, supports POE power supply, easy to expand, can integrate multiple Device networking forms an ADS-B network to provide a wide range of large-scale coverage Low altitude surveillance. The receiver integrates GPS+BD module, which can Provide high-resolution timestamps for each received message, allowing Using Time Difference of Arrival (TDOA) to calculate aircraft position, supporting Multi point positioning system (MLAT).

The EXD46-10LR adopts an optimized RF circuit, with a receiving sensitivity of up to -102dBm and a stable monitoring distance At 350km. The receiver integrates a high-performance DSP processor, supports simultaneous output of RS232 serial port and network port, and is compatible with self The main developed ADS-B information decoding algorithm and collision detection algorithm can simultaneously output raw data through both serial and network ports ADS-B message, CAT021 format data or aircraft plaintext information (aircraft identification number ICAO, flight number, latitude and longitude, etc.) Altitude, speed, heading, transponder number, etc., compatible with commonly used ground station software and air traffic control automation systems in China.


Features

  • Maximum receiving sensitivity -102dBm, monitoring distance>350km

  • Supports POE power supply, TCP/UDP protocol for easy networking

  • Can output ADS-B raw messages, CAT021 data, or aircraft plaintext data

  • Integrated GNSS, supporting Multi Point Positioning System (MLAT)

  • Metal shielded casing, high stability, wide power input


Application

  • ADS-B signal receiver

  • Aerial obstacle avoidance and drone collision risk monitoring

  • Airspace monitoring

  • Ground equipment, virtual radar, multi-point positioning system (MLAT)

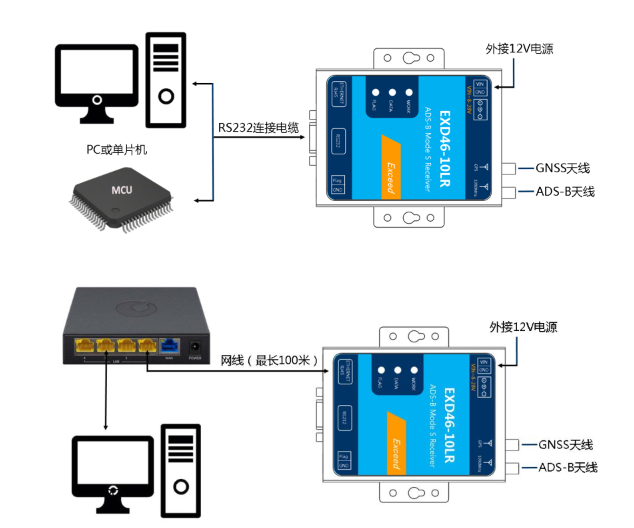

Hardware Connection

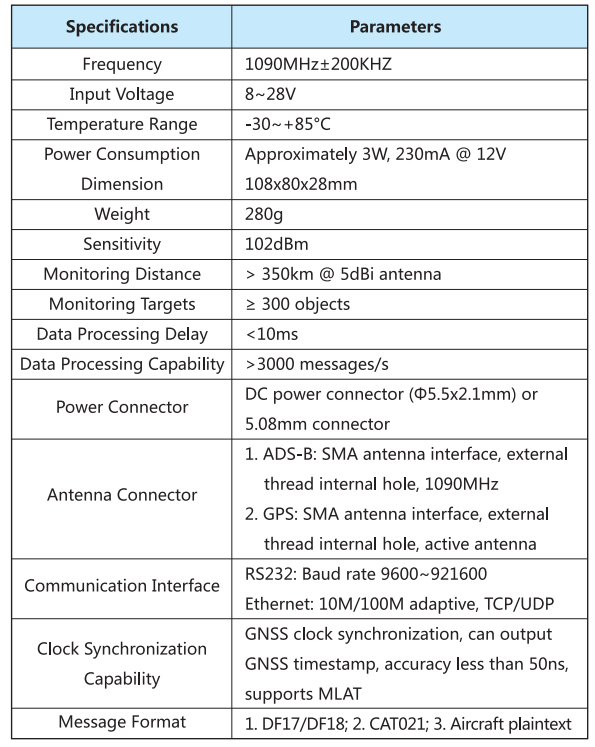

Technical Parameters
