EXD51-10LR(IP66 Outdoor APPlication)

EXD51-10LG is an industrial grade POE powered ADS-B ground station receiver that can receive 1090MHz ADSB signals and decode them into information that can be recognized by surveillance software. It can be used for air traffic control surveillance command, scene activity target monitoring, etc. The receiver adopts Ethernet data interface, supports TCP/UDP protocol, integrates multi-mode GNSS module, and can output ADS-B data with high-precision timestamp. Therefore, it is also suitable for radar calibration or multi-point positioning (MLAT).

The EXD51-10LG receiver adopts an optimized RF hardware filtering circuit, which can effectively filter out out out of band noise in spatial channels to obtain better signal-to-noise ratio. It integrates a high dynamic signal processing circuit internally, allowing simultaneous reception of ADS-B broadcast information from close to long distances. The typical receiving sensitivity can reach -110dBm, and the monitoring distance can reach 350km. The receiver supports single machine or dual machine redundancy design. This dual redundant architecture with two independent ADS-B receiving circuits and two independent antennas inside avoids problems such as insufficient coverage and peripheral signal interference caused by occlusion in single machine configuration, greatly increasing coverage range and system reliability.


Feature

  • Maximum receiving sensitivity -110dBm, monitoring distance>350km

  • Can output various data formats such as DF17/DF18, aircraft plaintext data, JSON, etc

  • RJ45 Ethernet communication, POE power supply

  • Metal shielding shell, IP66, waterproof and dustproof, high stability


Application

  • ADS-B signal receiver

  • Low altitude surveillance, airport situational awareness, airspace monitoring

  • Radar calibration, multi-point positioning (MLAT)

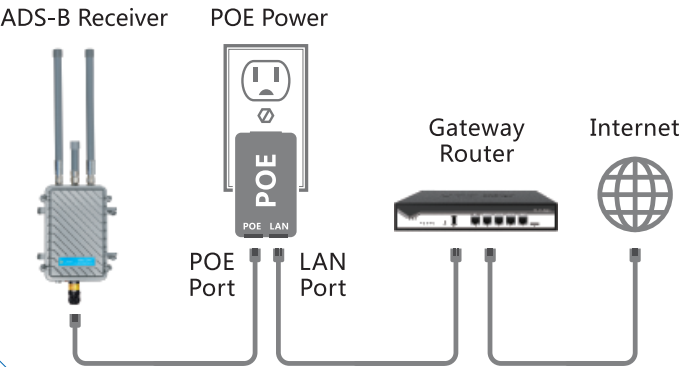

Hardware Connection

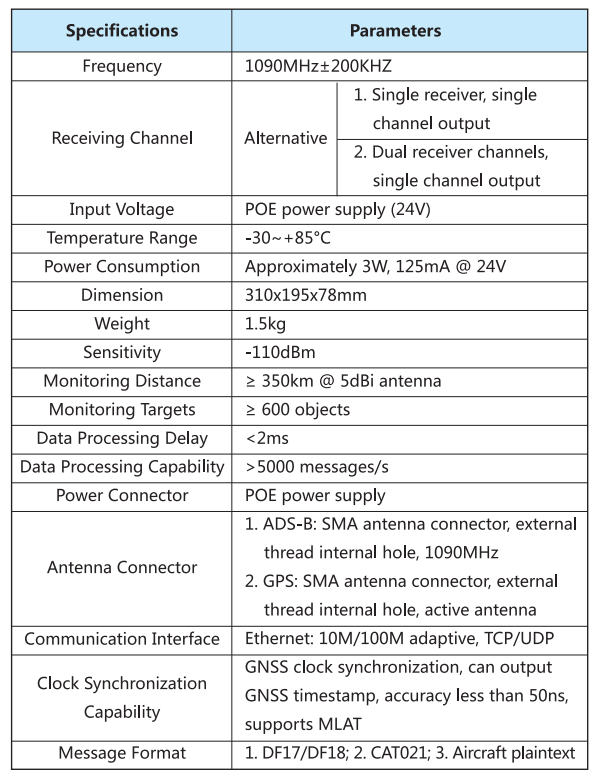

Technical Parameters
