EXD54-LS Remote ID

EXD54-LS is an outdoor waterproof unmanned aerial vehicle remote identification ground station receiver that supports simultaneous reception of 2.4G and 5.8G channels, fully complying with GB42590 "Safety Requirements for Civil Unmanned Aerial Vehicle Systems", and can provide stable and extensive unmanned aerial vehicle monitoring. The receiver adopts professional outdoor design, with an all aluminum shell and fiberglass antenna, suitable for working in various harsh environments such as wind, sun, rain, snow, and freezing. It supports pole and wall installation, Ethernet POE or solar power supply, TCP/UDP protocol, and can connect multiple devices to servers to form a large-scale airspace monitoring system.

The local station receiver adopts a high gain omnidirectional fiberglass antenna, with two independent receiving modules and a high-performance processor built-in. It can monitor drones within a range of up to 5km, support up to 100 drone targets simultaneously, support multiple protocol outputs, provide upper computer configuration software, support network remote configuration, support firmware remote upgrade, provide software customization and technical support, and facilitate use and maintenance.


Features

  • Complies with GB42590

  • Dual channel 2.4G and 5.8G simultaneous reception

  • Can output original broadcast messages, parsed drone plaintext or JSON format messages

  • Supports TCP/UDP communication protocol, easy to expand networking

  • Metal shielded casing, high stability, wide power input

  • Optional solar power supply and 4G transmission, convenient for deployment in areas without power and network


Application

  • Drone monitoring, airspace monitoring

  • Drone countermeasure

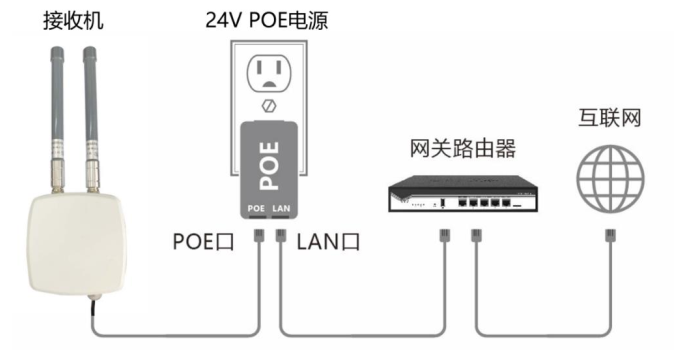

Hardware Connection



Technical Parameters
