EXD55-LS ADS-B Receiver

EXD55-LS is an outdoor waterproof ADS-B ground station receiver that provides stable and extensive airspace surveillance. The receiver adopts professional outdoor design, with an all aluminum shell and fiberglass antenna, suitable for working in various harsh environments such as wind, sun, rain, snow, and freezing. It supports pole and wall installation, Ethernet POE or solar power supply, TCP/UDP protocol, and can connect multiple devices to servers to form a large-scale airspace monitoring system.

The signal input end of the local station receiver adopts two-stage narrowband filters and two-stage low-noise amplifiers, effectively filtering out most of the out of band noise in the spatial channel to obtain better signal-to-noise ratio. The typical receiving sensitivity can reach -95dBm, and the monitoring airspace range is greater than 250km; Internally integrated high dynamic signal processing circuit, allowing for simultaneous reception of ADS-B broadcast information from close range to long range. The device can output raw ADS-B messages (DF17/DF18), calculated aircraft plaintext information (aircraft identification number ICAO, flight number, latitude and longitude, altitude, speed, heading, etc.) or JSON format messages through the network port, providing upper computer configuration software and technical support, easy to use, and convenient for deployment.



Features

  • IP66 dustproof and waterproof rating, antenna integrated with 2KV lightning protection design

  • Can output DF17/DF18, aircraft plaintext data or JSON format messages

  • Supports TCP/UDP communication protocol, easy to expand networking

  • Metal shielded casing, high stability, wide power input

  • Optional solar power supply and 4G transmission, convenient for deployment in areas without power and network



Application

  • ADS-B signal receiver

  • Airspace monitoring

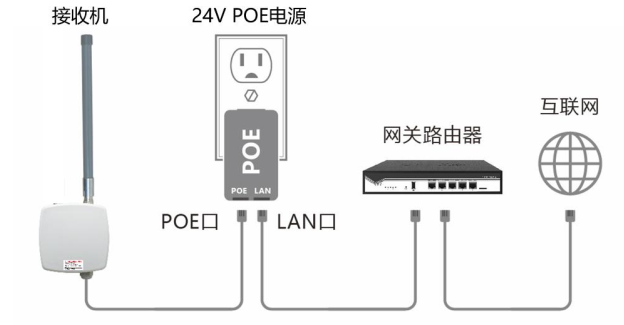

Hardware Connection

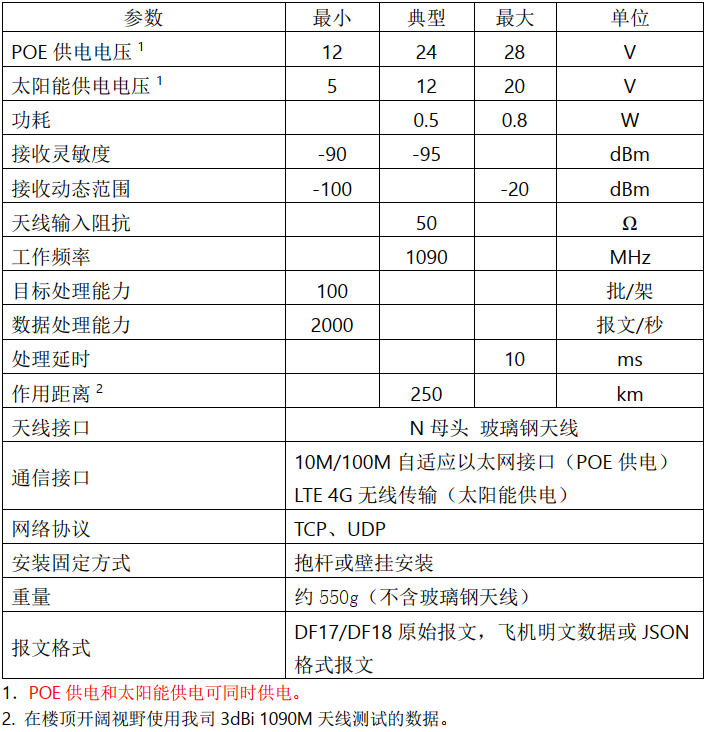

Technical Parameters
