EXD15-TRB is a portable ADS-B transceiver. It sends aircraft identification information (ICAO and callsign), latitude and longitude, altitude, speed, heading and other information to surrounding aircraft and ground stations through intermittent broadcasting in S mode. After receiving the broadcast information, the neighboring 1090ES receiving device or 1090ES ground station can display the aircraft's flight path and achieve flight situation monitoring. At the same time, it can receive other airborne ADS-B out signals within a range of about 200km, and display traffic information in the surrounding airspace through the GDL90 protocol and built-in WIFI module in commonly used electronic flight bag software.

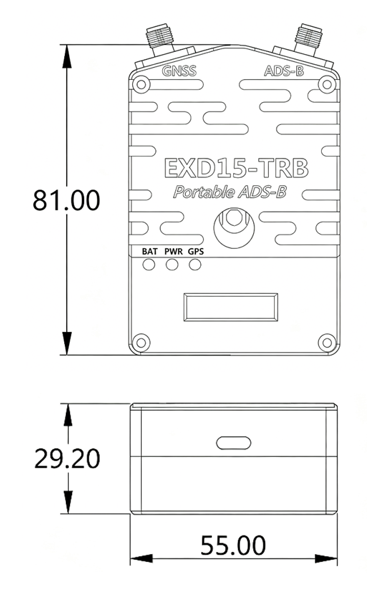

The EXD15-TRB fully complies with the D0-260B standard, with a small size (81 * 55mm), light weight (about 140g), high integration, display screen, and built-in 6000mAH lithium battery that can last for 15 hours of operation. It supports mobile phones or computers to modify ICAO, callsign, work mode and other parameters through WIFI connection, making it very convenient to use.

Features

• Compliant with DO-260B

• Transceiver, RF signal center frequency: 1090MHz±200KHz

• Transmit power 43dBm (20W), range 60km

• Receiving sensitivity -90dBm, line-of-sight range 200km

• Integrates GNSS module, horizontal positioning accuracy better than 1.5 meters, supports SBAS

• Integrated barometric pressure sensor provides barometric altitude and vertical climb rate

• Integrated attitude sensor provides G-value display

• Supports common electronic flight bags for displaying surrounding airspace infourmation

• Built-in rechargeable lithium battery, can work continuously for more than 15 hours

Application

• Small general aviation aircraft

• Unmanned airships, airborne platforms, unmanned aerial vehicles

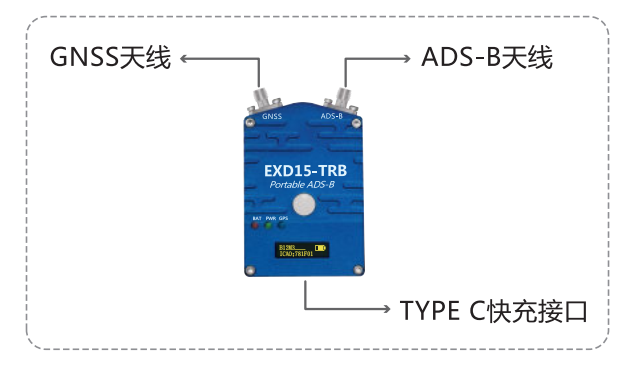

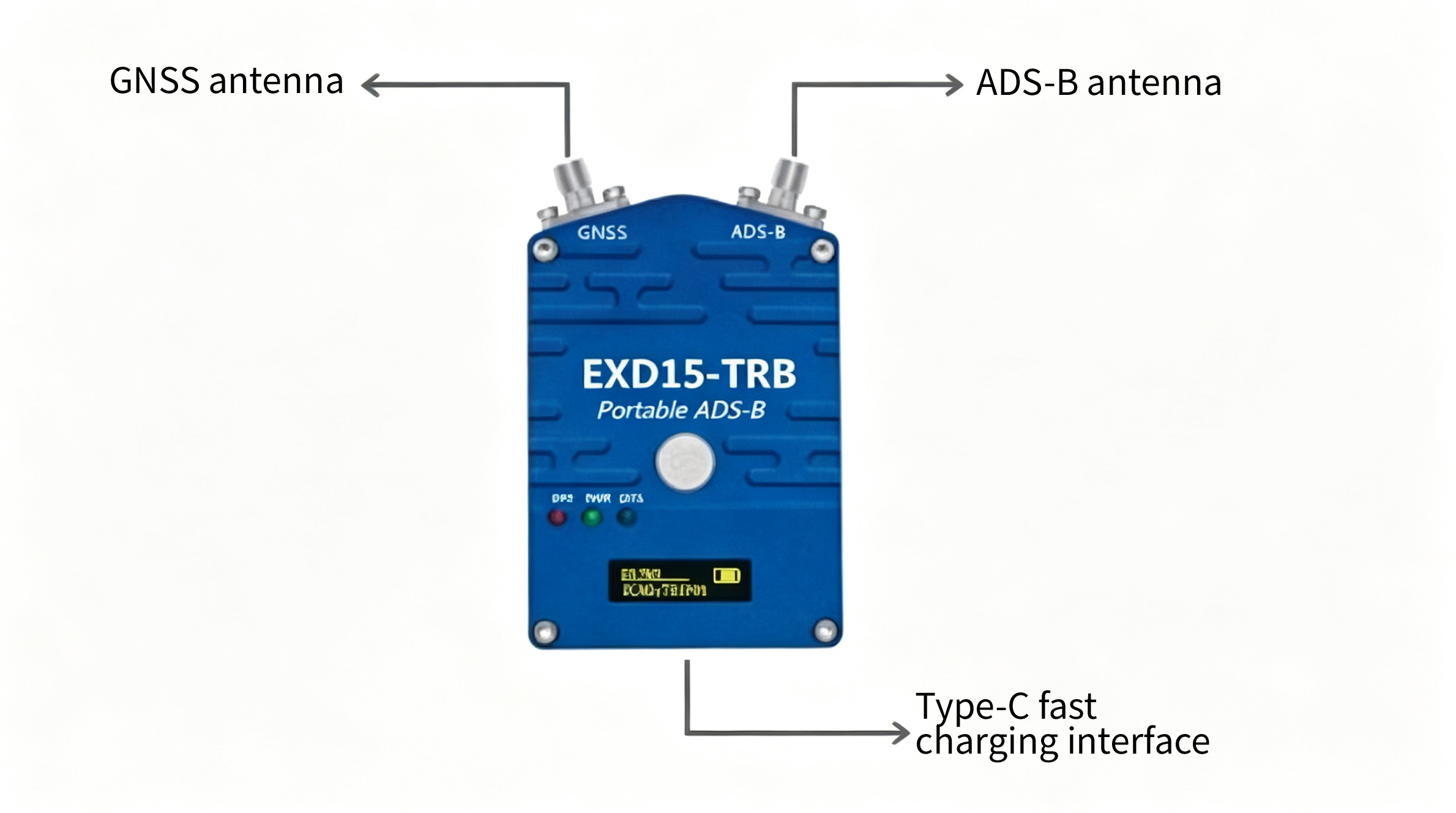

Hardware Connection

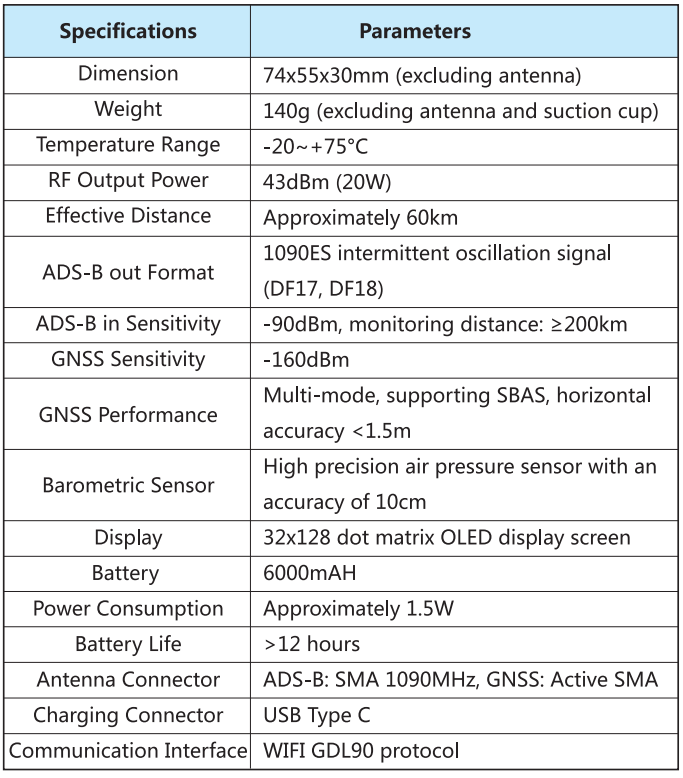

Technical Parameters
